LOAD CELLS
Digital Load cell is a late-new electric weighing technology combined with modern microelectronics Tech & microcomputer Tech, based on the strain gauge load cells. It includes analog load cell and digital convert module, Digital module is made up of high compositive IC circuit with SMT surface-stick technology, mainly including amplifier. A/D converter, controller (CPU), memorizer, interface circuit and digital temperature load cell etc.
TECHNICAL SPECIFICATIONS
MODEL
MODEL
Rated Load
10,15,20/25,30t
Rated Output
2000/25000, 30000
Data refresh frequency
50Hz
Communication baud rate
9600BPS
Accuracy
+0.02%F.S
Creep error(30min)
+0.02%F.S
Temperature Coefficient
+0.02%F.S/10C
Zero Balance
+0.1%F.S
Safe Overload
150%F.S
Protection Class
IP68
MODULAR PITLESS WEIGH BRIDGE
MODEL
WIEGHT BRIDGE
CAPACITY
LOAD CELL
RSI-WB
2.5 * 5m
10-15t
4
RSI-WB
3 * 7.5m
30-60t
4
RSI-WB
4 * 6m
30-60t
6
RSI-WB
3 * 10m
30-60t
6
RSI-WB
3 * 12m
30-60t
6
RSI-WB
3 * 14m
50-100t
6
RSI-WB
3 * 16m
60-100t
8
WEIGHING INTELLIGENT TERMINAL
Alpha numeric Digitizer Touchweigh – TFT is a complete 1 weighbridge solution for single weigh platform.
TFT FEATURES
- 7 inch multi color TFT screen display
- Bigger weight font display.
- Home screen display to show weight, menu icons, date time.
- Strong branding with use of Logo, Header, Footer on Home screen.
- Menu based user friendly operation, with reduced passwords.
- At a glance view during weighment, view ticket, view report.
- At a glance view for group of features on a screen.
SPECIAL FUTURES
- Sophisticated operations powered by 32 bit ARM Processor.
- Multi step calibration, smart calibration supported by 24bit ADC.
- High end protection against lightning and surge using improved SMPS.
- Memory of 1 lac data records
- Pendrive dumping to get data records in softcopy.
- Dot matrix printer connectivity using Centronics /USB port.
- USB keyboard connectivity.
Multiple SMS feature for ease of weighbridge owners and clients.

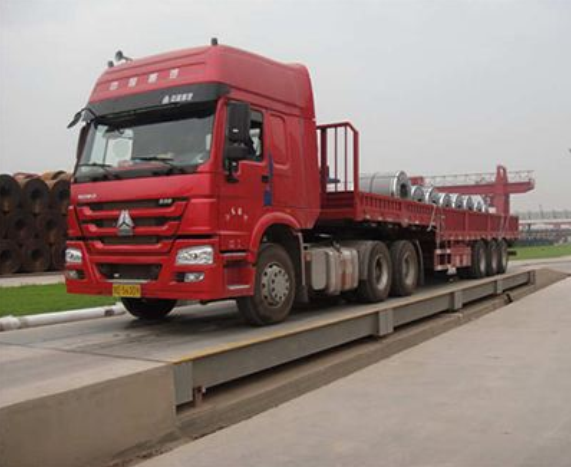

Modular Pitless weighbridges are a much more flexible option. They simply sit on the surface and can be placed wherever they are needed Whilst Modular Pitless weighbridge generally requires single room to accommodate maintenance access around the outside and loading/unloading ramps, they are a more affordable option for most businesses due to not needing any groundwork .
Modular Pitless weighbridges are generally, a better option for businesses due to simpler maintenance and flexibility.
The weighbridges we supply at R.A. M. Scale industris can be pit or pit less mounted, but surface mount are specifically designed to be low profile and as flexible as possible. This type of weighbridge deck is modular, allowing you to expand your weighing needs. simply by extending the size of the deck at a later date, without the need of buying a whole new weighbridge.
